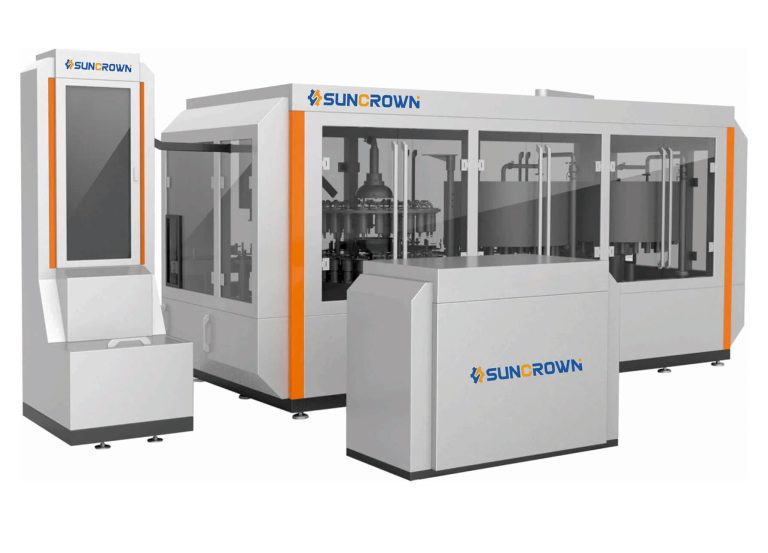

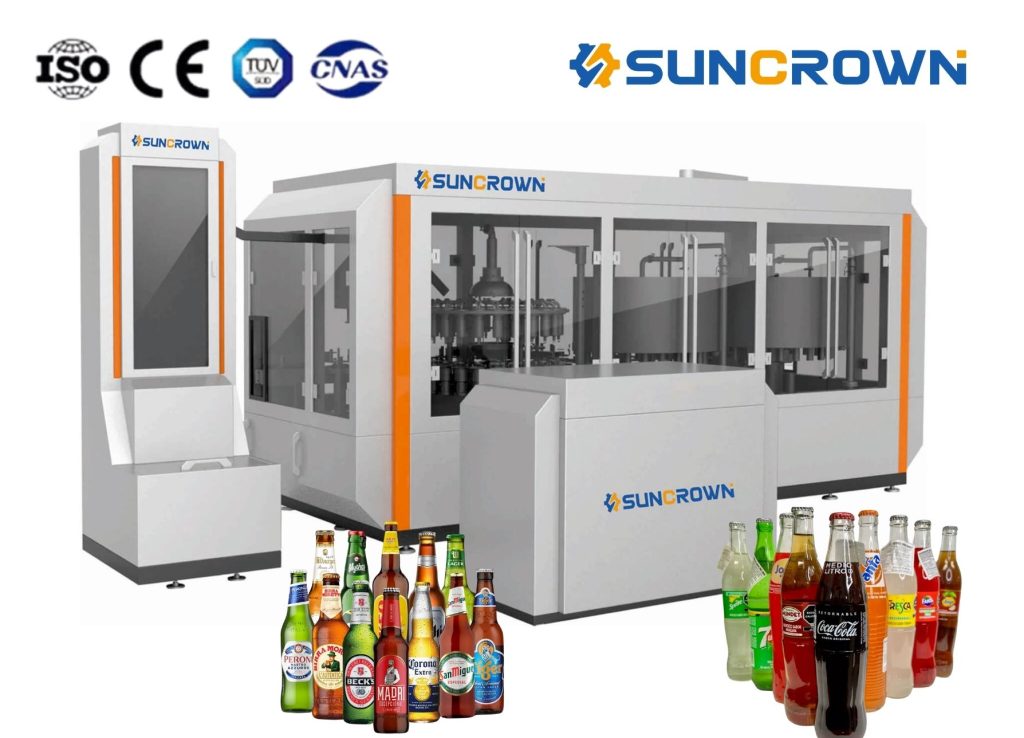

The KYGHF Series 3-in-1 monoblock machine adopts internationally advanced filling and capping technology and is widely used in the production of beverages in glass bottles.
Filling Speed: 10000BPH | 12000BPH | 18000BPH | 24000BPH | 36000BPH
Filling Bottle Size: 330ml | 500ml | 600ml | 750ml | 1L | 1.5L

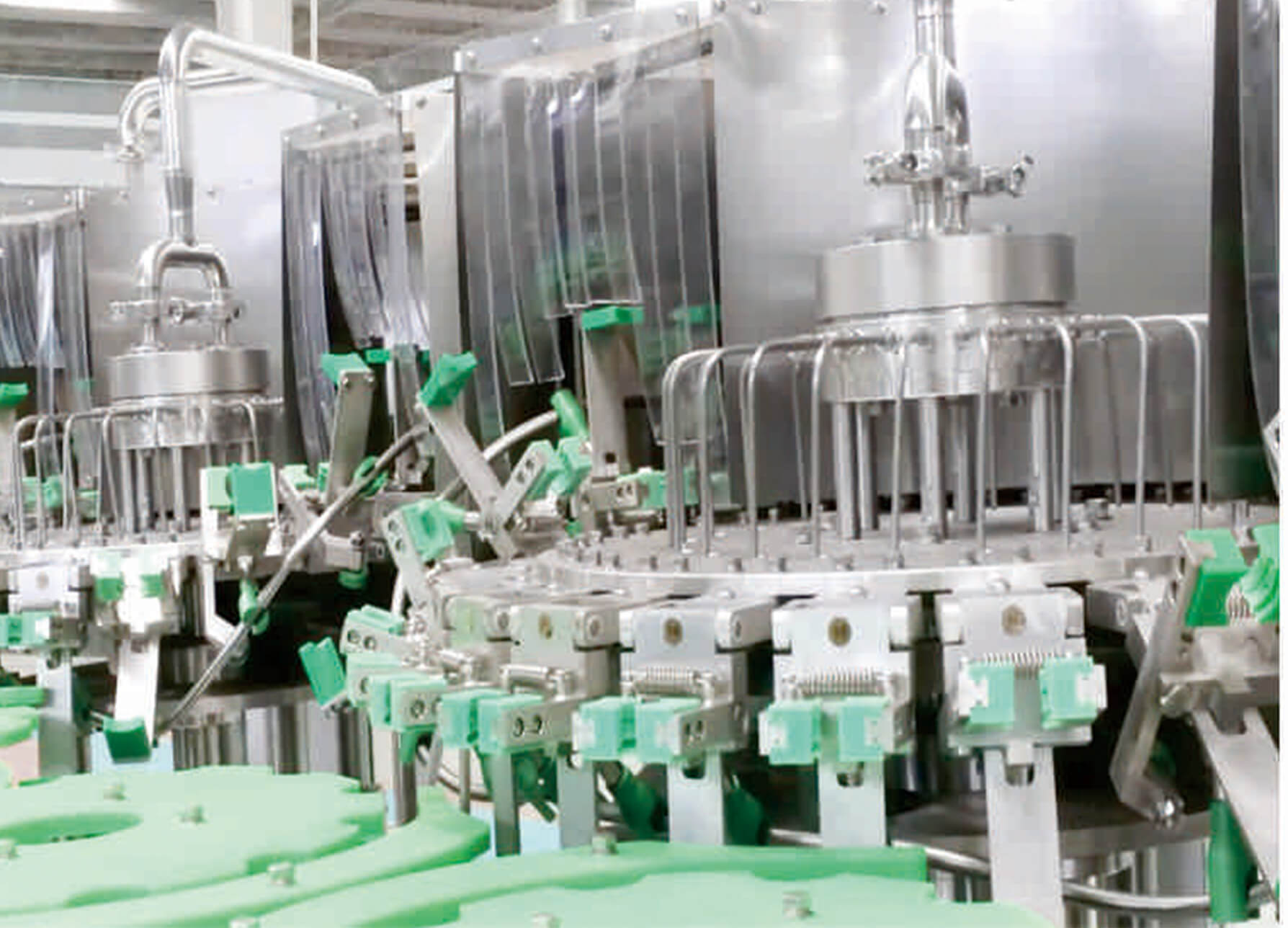

Integrates rinsing, filling, and capping in a space-saving unit, easy to operate and maintain.
SUS304 stainless steel for hygiene and durability; tempered glass enclosure for safety and visibility.
User-friendly panel with real-time monitoring and precise control.
Preheats bottles to reduce breakage risk, ideal for glass bottles.

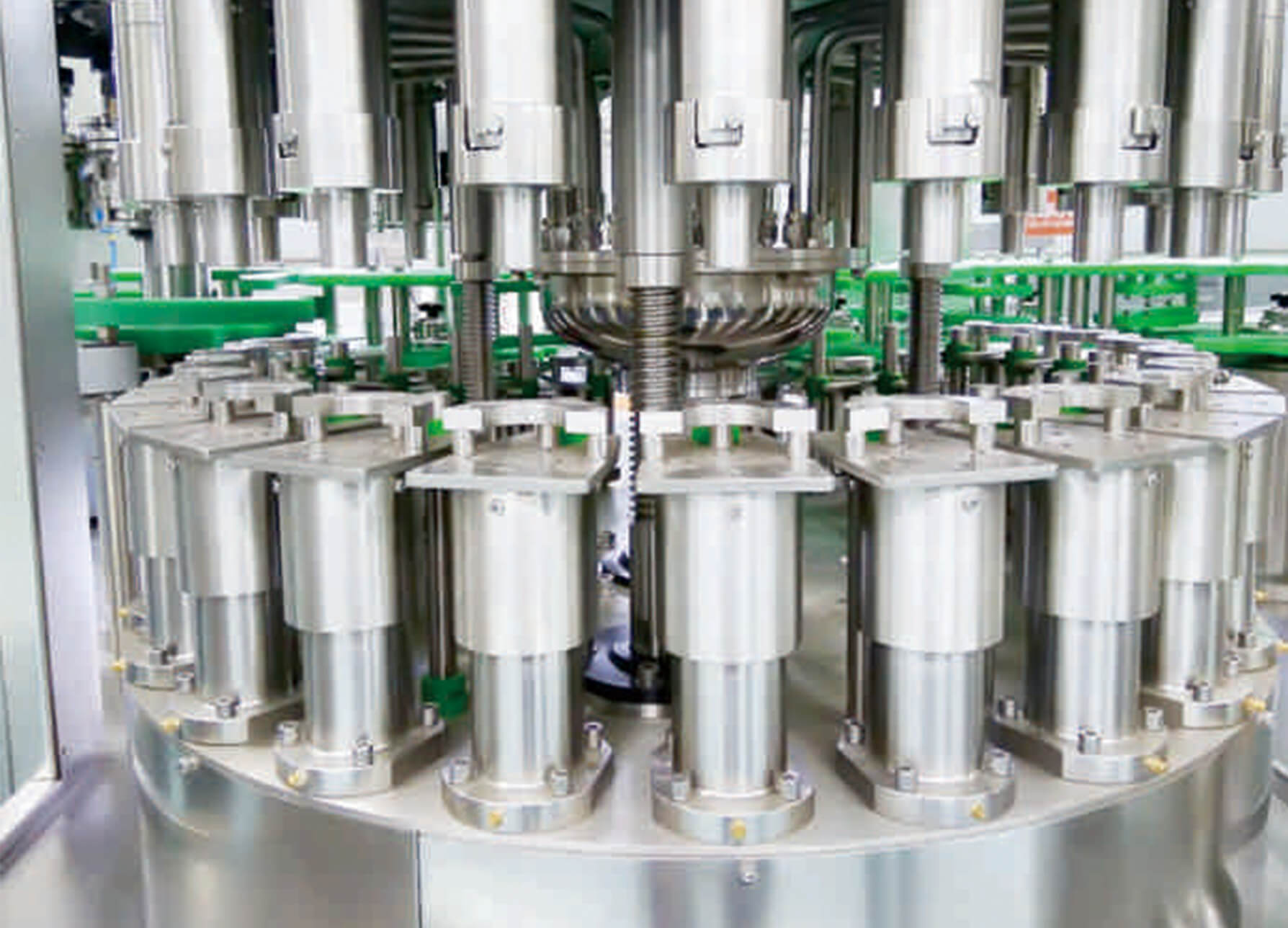

Micro-negative pressure ensures uniform liquid levels with minimal loss.
Automatic detection triggers alarms or stops filling to protect product quality.
Automated Clean-in-Place system for better hygiene and less downtime.
Constant-torque heads ensure precise sealing with minimal cap damage.
Waterfall cap sorter feeds caps smoothly without damage.
Sealed design allows direct washing for easy maintenance.
| Product model | GRO8A | GR10A | GR12A | GR15A | GR20A |
| Capacity | 10000 | 12000 | 18000 | 24000 | 36000 |
| Bottle type | D50~96mm;H150~320mm;V330~1500ml | ||||
