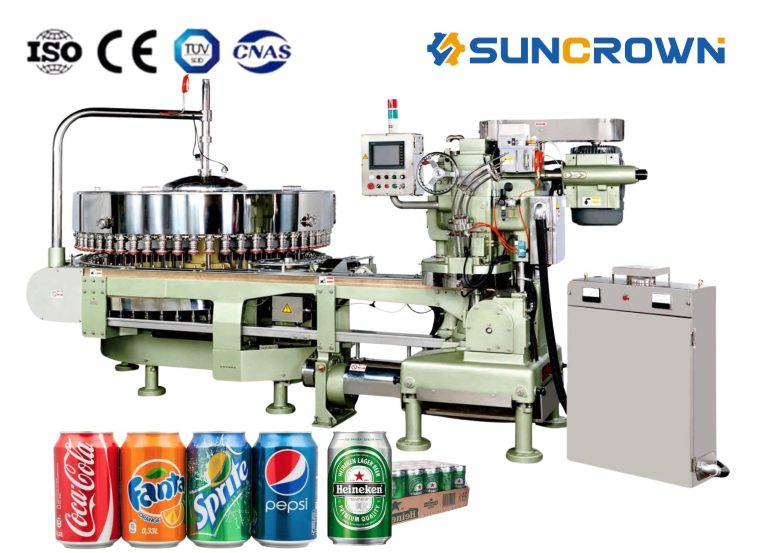

The machine features automatic lid feeding controlled by a pneumatic system, without contact with the can body, ensuring hygiene and precision. It adopts level-controlled (iso-baric) filling technology, with production speed regulated by variable frequency drive (VFD) for flexible capacity adjustment.

More than 95% of the exterior materials are made of stainless steel, ensuring both an aesthetically pleasing appearance and compliance with hygiene standards.

To enhance the vacuum level inside the cans, a steam injection system can be configured according to customer requirements. For technical support, the machine can also be equipped with a remote monitoring system upon request.

Main Structural Features

• The machine is equipped with an electronic temperature display, located on the control panel, showing the temperature with an accuracy of ±1°C.
• The liquid level in the filling tank is controlled by a three-point high/low-level sensor system, and the tank is fitted with a reinforced glass level sight gauge for visual monitoring.
• The entire machine stops automatically when the liquid temperature in the filling tank drops below the preset filling temperature.
• The filling tank is made of SUS316 stainless steel, ensuring excellent corrosion resistance and hygiene.
• All filling nozzles and components in contact with the product are made of SUS304 stainless steel.
• The filling and seaming units are equipped with safety protection systems: the machine will automatically stop in case of no lid, missing can, or can jam.
• All mechanical components are equipped with automatic lubrication, except for a few areas (such as grease points) that require manual lubrication.
• The system uses variable frequency drive (VFD) control, allowing smooth speed adjustment from 0 cans up to the desired output rate.
• The seaming roller adjustment uses a worm gear screw mechanism with an integrated scale gauge, making adjustment precise and user-friendly.
• All cam components of the seaming machine are hardened and finely ground for durability and smooth operation.
• The first and second seaming rollers are treated with titanium alloy coating to enhance wear resistance and sealing precision.
• The electrical control box and all safety guards of the machine are made of SUS304 stainless steel, ensuring durability and compliance with food-grade standards.
